LINKGAIN Ethernet Extender Industrial
THE SIMPLE WAY TO SEND YOUR LAN OVER COPPER

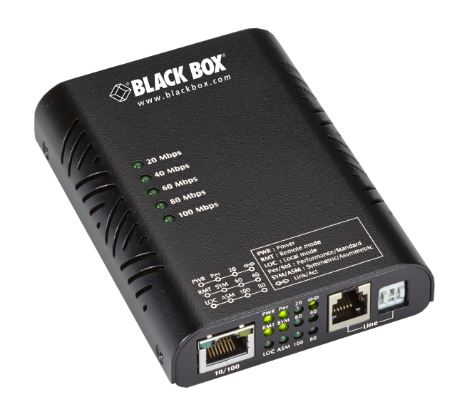

Just plug a LB320A unit into each end of your copper wire and use simple DIP switches to set one unit as local (CO) and the other as remote (CP)—there’s never any software to install. Plus, the RJ-45 port autosenses speed and duplex and features MDI/MDI-X for easy cabling.
Save wiring costs by using voice-grade copper wire—even phone wire you already have installed.
Extends 10- or 100-Mbps Ethernet up to 1.6 miles (2.6 km) at 1 Mbps and up to 300 meters at 100 Mbps. Perfect for connecting an isolated user in another building or in another part of a large building.
| Approvals | CE, RoHS2, UL; ISO: Manufactured in an ISO facility Safety: UL60950-1, EN60950-1 EMI: FCC Part 15B, Class A; EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3 EMS: EN61000-6-2: ESD Standard: EN61000-4-2; Radiated RFI Standards: EN61000-4-3; Burst Standards: EN61000-4-4; Surge Standards: EN61000-4-5; Induced RFI Standards: EN61000-4-6-8; Magnetic Field Standards: EN61000-4-8Environmental Test Compliance: Vibration Resistance: IEC60068-2-6 Fc; Shock: IEC60068-2-27; Free fall with package: FED STD 101C Method 5007.1 |
| Connectors | Ethernet Port: (1) 10/100BASE-TX port; Ethernet Extender Port: (1) RJ-11 and terminal block port |
| Data Rate | 100 Mbps at 960 ft. (300 m); 80 Mbps at 1280 ft. (400 m): 60 Mbps at 1920 ft. (600 m); 40 Mbps at 2560 ft. (800 m); 20 Mbps at 3840 ft (1200 m); 1 Mbps at 8320 ft. (2600 m) |
| Dimensions | 0.94″H x 3.16″W x 4.3″D (2.38 x 8.03 x 10.9 cm) |
| Environmental | Ambient Relative Humidity: 5 to 95%, noncondensing |
| LED Indicators | Per unit: Power, Status; Ethernet Extender port: Link/Activity, Per, RMT, LOC, SYM, ASM, Line Speed |
| Mounting Type | DIN-rail (top hat type 35 mm) or wallmounting |
| Power | Input: 12 VDC (DC jack) Consumption: 4.2 W maximum |
| Technology | Standards: IEEE 802.3, 10BASE-T; IEEE 802.3u, 100BASE-TX; IEEE 802.3x, full-duplex and flow control Forward and Filtering Rate: 10 Mbps: 14,880 pps; 100 Mbps: 148,810 pps Processing Type: Store-and-Forward,Half-duplex back pressure and IEEE 802.3x full-duplex flow control Auto-negotiation: Auto MDI/MDI-X |
| User Controls | DIP Switch 1: Auto/Local mode; DIP Switch 2: Symmetric/Asymmetric mode; DIP Switch 3: Performance/Standard mode |
| Weight | 0.33 lb. (0.15 kg) |
